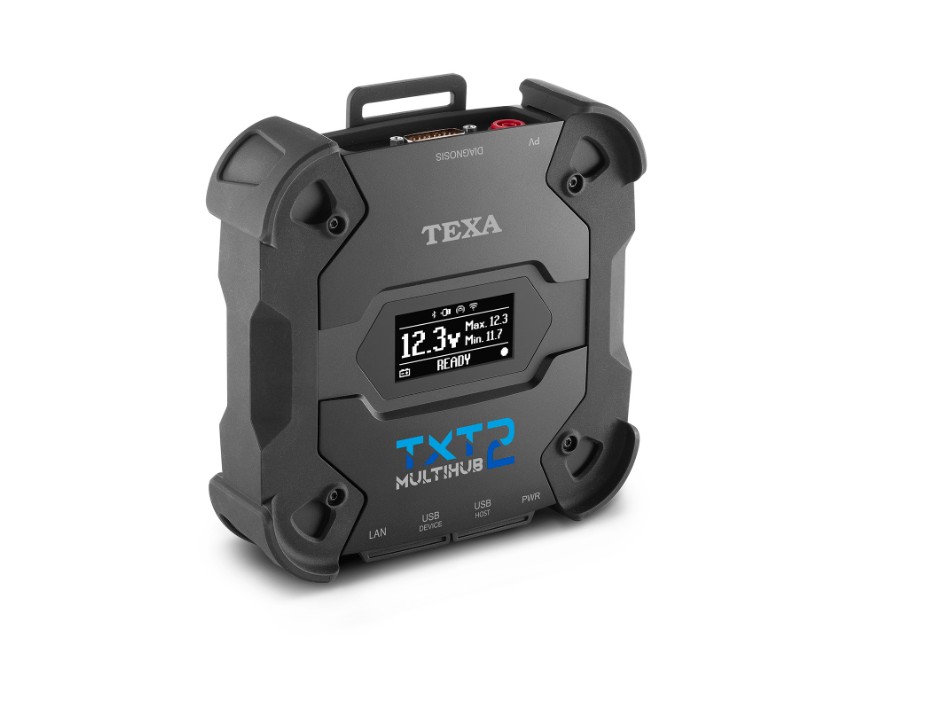

The Navigator TXT Multihub 2, TEXA’s newest VCI (vehicle communication interface), is a cutting-edge device. It stands out in the market, offering more features and functionality than any other VCI currently available. This product serves as the essential link between a vehicle’s diagnostic port and the diagnostic software.
$2,600.00
When you purchase this kit, you can earn up to $500 in tool credits. These tool credits can be used with us to purchase tool brands like Milwaukee, DeWalt, Craftsman, and more. Contact us to see how much you qualify for and to redeem the credits.
This package includes the TEXA Navigator TXT Multihub 2.
The Navigator TXT Multihub 2 can be used to work on any IDC6 software. This includes Car, Bike, Marine, Truck, and Off Highway environments. It is the perfect tool for anyone who does diagnostic work on multiple environments.
Are you having trouble figuring out what tools will work best for you? Let us know what vehicles you work on and we will give you a custom recommendation based on our experience using different diagnostic tools. When we recommend products we will make sure they work on
all of the equipment you diagnose.
The Navigator TXT Multihub 2, TEXA’s newest VCI (vehicle communication interface), is a cutting-edge device. It stands out in the market, offering more features and functionality than any other VCI currently available. This product serves as the essential link between a vehicle’s diagnostic port and the diagnostic software.
| Tech Specs | Main processor: • Type: iMX6 1 GHz • RAM: 512 MByte • Mass Storage: eMMC 8 GByte Coprocessor: • Type: STM32F439 168 MHz • RAM: 2 MByte SRAM, 8 MByte SDRAM • Flash: 2 MByte Power supply connector: PWR: 2.1 DC jack Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings) Consumption: 1 A @12 V max USB connectors: • USB: USB 2.0 host type A max 1 A out • USB DEVICE: USB 2.0 device type B (priority connector) Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE) WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz Operational band: 2400 ÷ 2483.5 MHz Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz) Diagnostic connectors: • DIAGNOSIS: DSUB-26HD (ISO 22900-1) • DoIP: RJ45 (UDP/TCP 13400) Electronic switch: 2-way, 13 independent positions Control units reprogramming connector: PV (SAE J2534-1) User interface: Display OLED 64×128 dot Operating temperature: 0 ÷ 50 °C Storage temperature: – 20 ÷ 60 °C Supported protocols: • Blink codes • K, L (with current protection 100 mA), ISO9141-2, ISO14230 • CAN ISO11898-2 High Speed • Second ISO11898-2 CAN channel • CAN ISO 11898-3 LOW Speed • CAN SAE J2411 Single Wire • SAE J1850 PWM • SAE J1850 VPW • SAE J2534-1 • SAE J1708 • UDP/TCP ISO 13400 (DoIP) Operating moisture: 10 ÷ 80 % without condensation Dimensions [mm]: 176,1 x 175,4 x 46,8 Weight: 600 g IP protection level: IP53 * (*) With properly closed protective caps. Directives: RoHS 2011/65/UE RED 2014/53/UE 2015/863/UE Electromagnetic compatibility: ETSI EN 301 489-1 ETSI EN 301 489-17 Radio systems: ETSI EN 300 328 Electrical safety: EN 62638-1/AC:2015 EN 62311:2008 |
|---|
