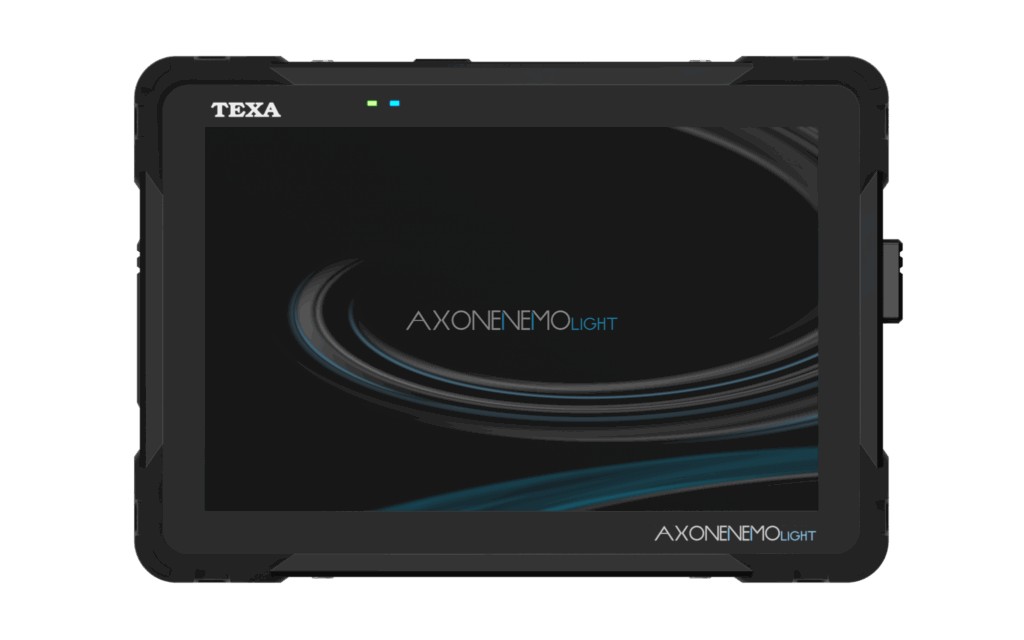

AXONE Nemo Light

The AXONE Nemo Light is one of the best compact diagnostic tools available. It was specifically designed to operate seamlessly across various IDC5 environments. You can have up to two environments installed on this device, ensuring flexibility and efficiency for your diagnostic needs.

$1,400.00

Get Up To $500 In Tool Credits With Your Purchase

When you purchase the AXONE Nemo Light you can earn up to $500 in tool credits. These tool credits can be used with us to purchase tool brands like Milwaulkee, DeWault, Craftsman, and more. Contact us to see how much you qualify for and to redeem the credits.

Learn more

What's Included?

If you’re looking for one of the best diagnostic tools on the market, the AXONE Nemo Light is unbeatable. This tablet is designed to work across multiple environments, providing flexibility and efficiency in your daily work. It’s the perfect compact diagnostic tool, offering all the essential features you need, and even more.

What Vehicles Can I Use This Diagnostic Bundle On?

The AXONE Nemo Light is compatible with multiple IDC5 environments. You can use it for cars, light commercial vehicles, bikes and boats diagnostics. With the right IDC5 software for your specific needs, this versatile tool can be used on almost any machine in the market.

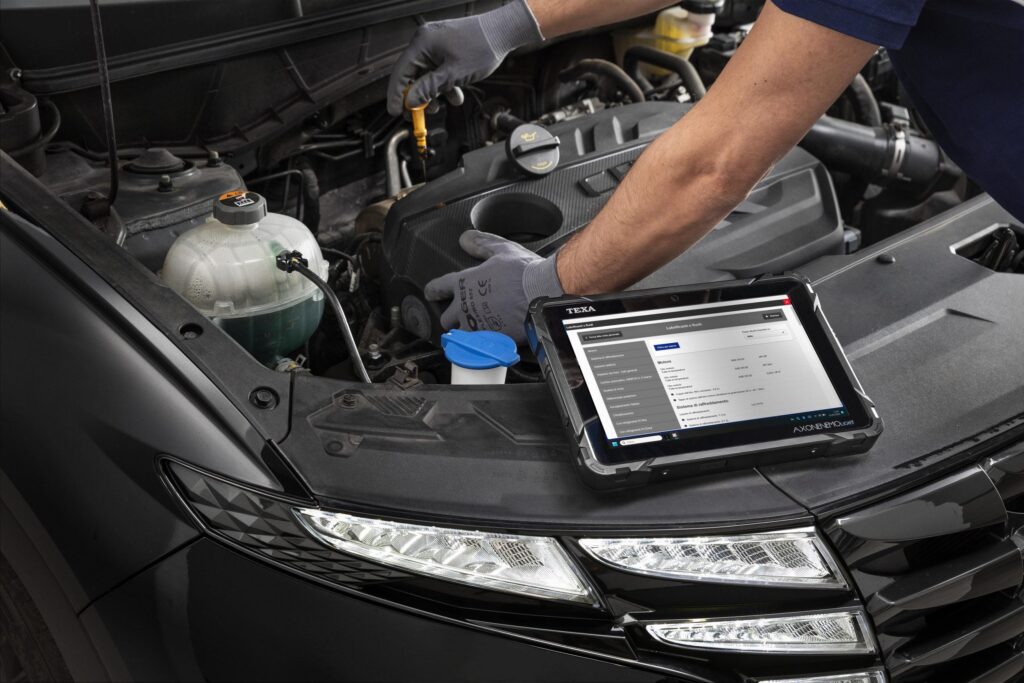

Your ally in the workshop

AXONE NEMO LIGHT offers an exceptional diagnostic experience. Its robust and reliable design ensures hassle-free usage and greater durability compared to a conventional tablet. With its advanced features, it is the perfect tool to enhance efficiency and expand the ability to work on various types of vehicles.

AXONE NEMO LIGHT operates on Windows 11 IoT Enterprise, delivering seamless performance. Powered by the Intel® N100 processor, 8 GB RAM, and 250 GB eMMC storage, it guarantees excellent speed and responsiveness.

With the latest Wi-Fi technology, it connects to the company’s Internet network for online access. The Bluetooth® 5.2 module provides quick connections to TEXA vehicle interfaces. Additionally, its built-in camera allows easy capture of details during maintenance operations, enabling report creation for customers or quick sharing of technical photos for assistance.

DISPLAY

10,1”

Resolution

1920x1200 pixel

Bluetooth 5.2

WIFI

CPU

Intel® N100

RAM 8GB

Storage 250 GB

eMMC

High-capacity battery

6000 mAh

A display with a view, on all diagnostics

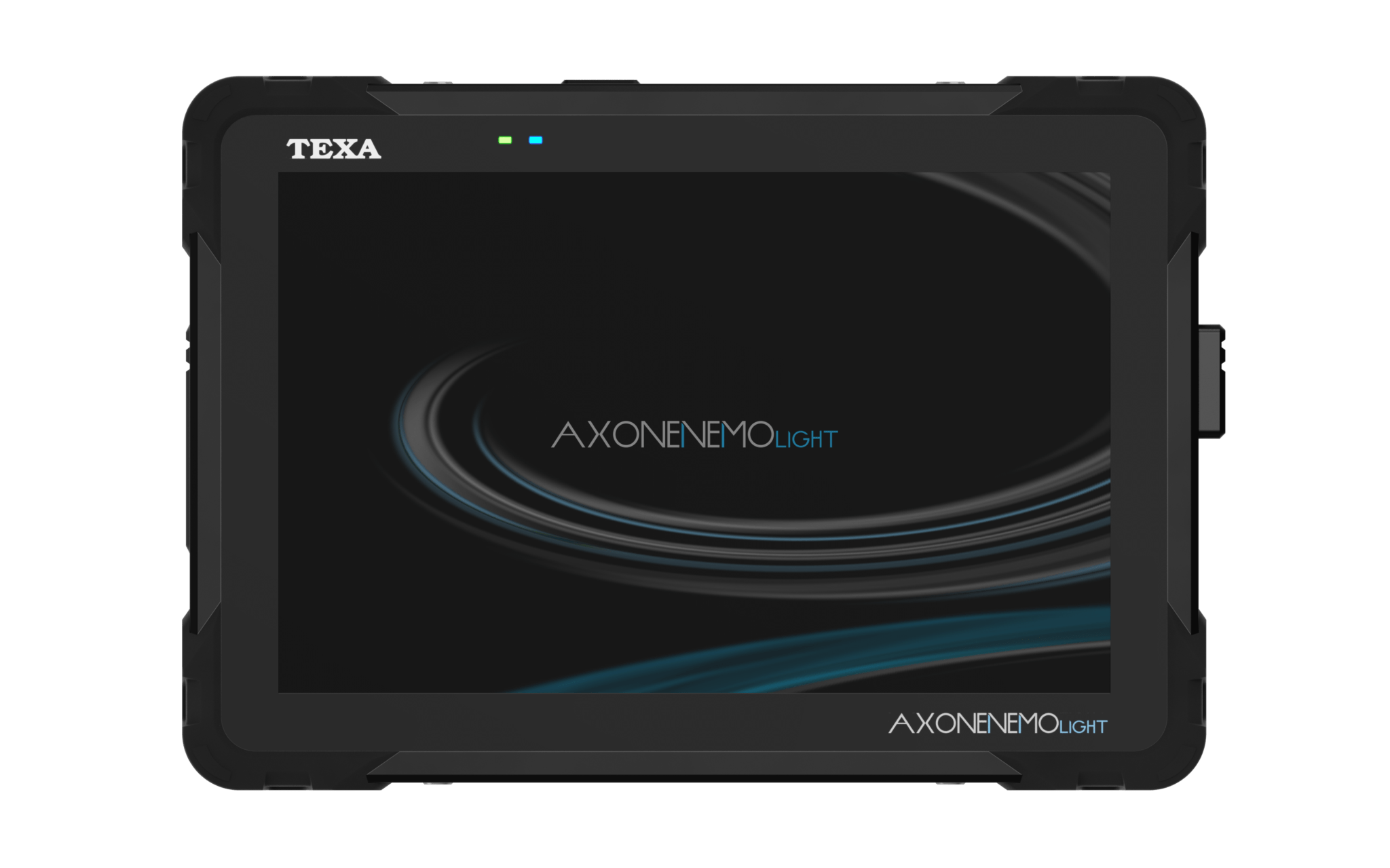

The AXONE NEMO LIGHT features a high-contrast 10.1-inch multi-touch capacitive display with a 1920×1200 pixel resolution. This display provides a clear and comprehensive view of the advanced diagnostic functions within the IDC5 software. The wide screen ensures an optimal display of diagrams and technical data, offering full visual support for diagnostic and repair operations. The responsive touchscreen enables smooth navigation between applications, making tasks simpler. Specifically designed for vehicle repairers, the AXONE NEMO LIGHT elevates the diagnostic and repair experience with unmatched clarity, reliability, and performance.

Want to know if this tool is right for you?

Get A Customized Recommendation

Are you having trouble figuring out what tools will work best for you? Let us know what equipment you work on and we will give you a custom recommendation based on our experience using different diagnostic tools. When we recommend products we will make sure they work on all of the equipment you diagnose.

NEMO’s body, always making the difference

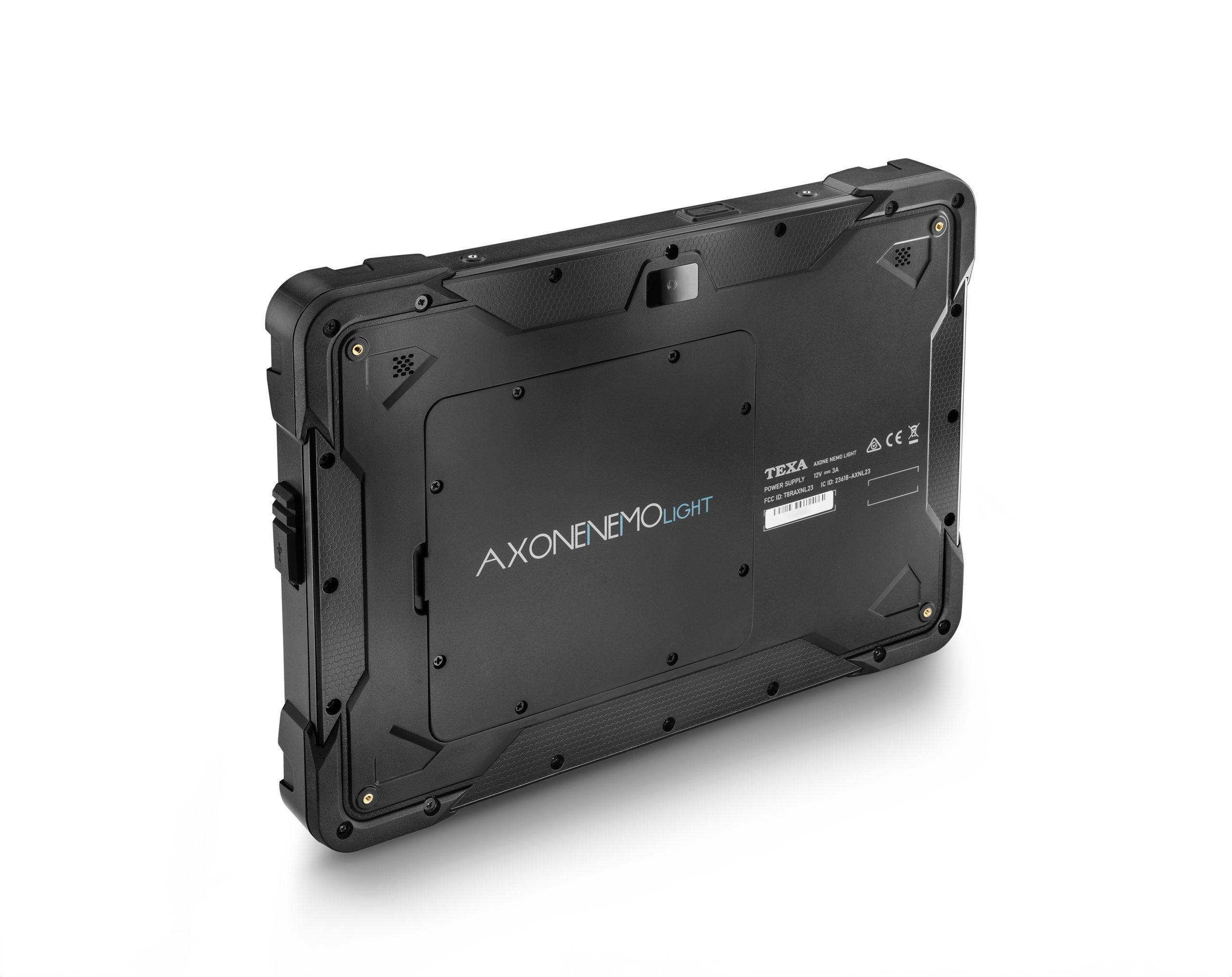

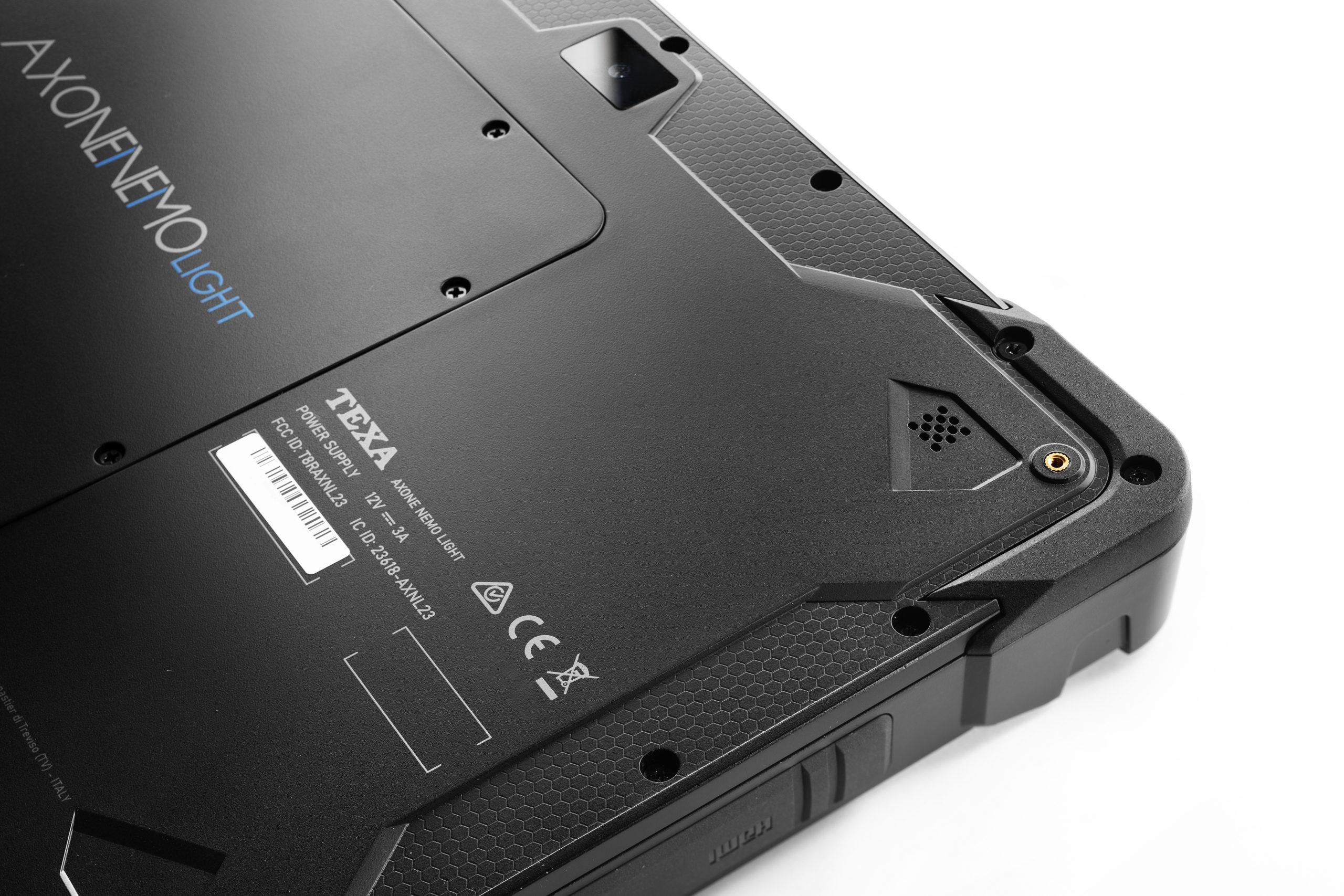

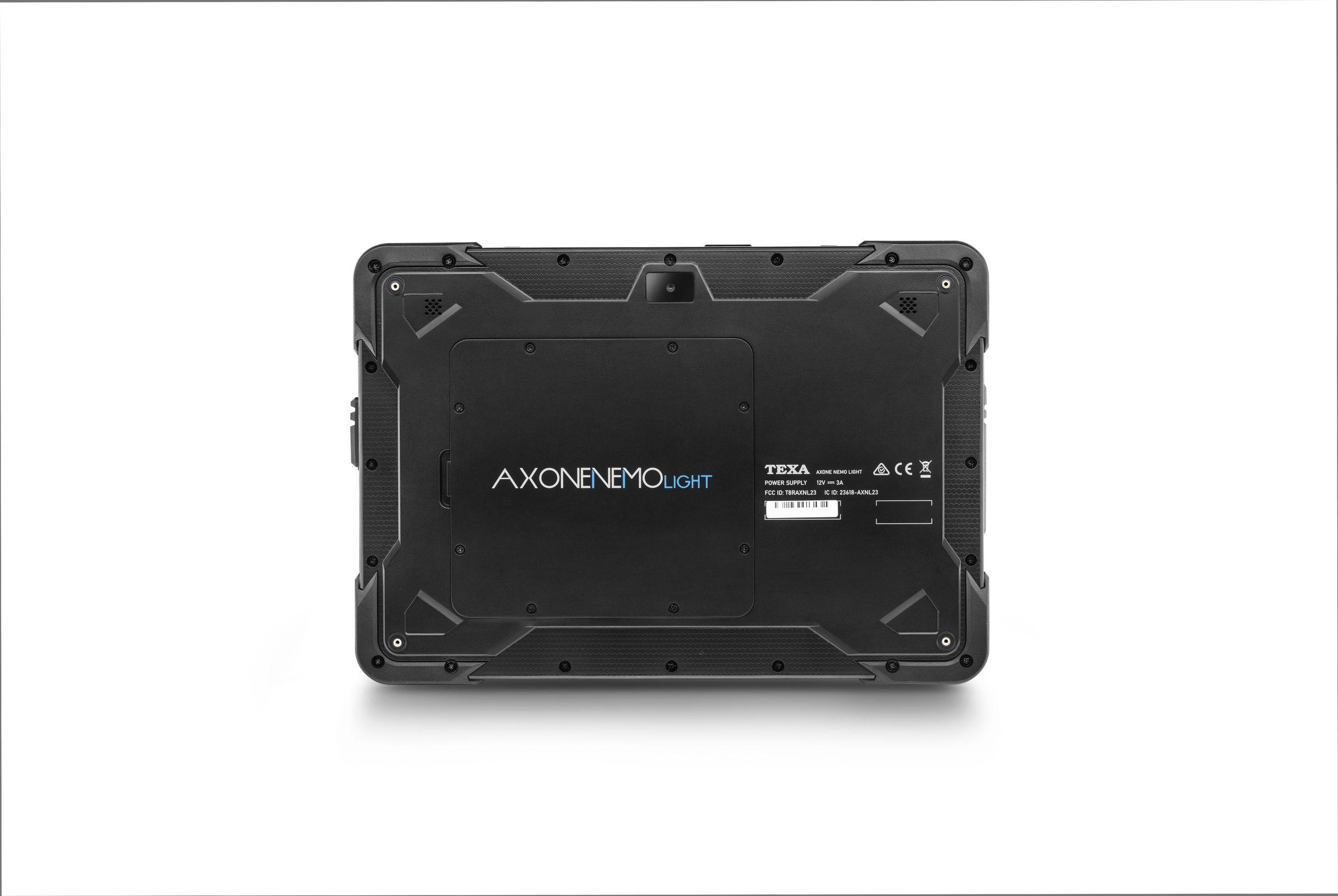

The AXONE NEMO LIGHT’s reinforced design offers the perfect combination of robustness and portability, ensuring durability in the toughest work environments. Built to withstand extreme conditions, it is designed to provide hassle-free use during extended diagnostic sessions. Its rugged structure is carefully engineered for optimal thermal dissipation, making it highly reliable for complex operations. These features ensure the AXONE NEMO LIGHT can handle demanding tasks in various environments, offering both practicality and long-term durability.

Always by your side

The AXONE NEMO LIGHT features an ergonomic and adjustable handle that enhances portability, making it easy to transport. You can conveniently hook it onto a vehicle’s steering wheel or place it on uneven surfaces, ensuring optimal visibility of the display at all times. This thoughtful design allows for greater flexibility and ease of use during diagnostic tasks.

Robustness, practicality and speed.

Always a family matter

For over three decades, the AXONE line has been synonymous with reliability, thanks to advanced and robust solutions that are able to support
vehicle repairers in every aspect of their daily work.

Multi-brand, multi-environment

A single software for all environments

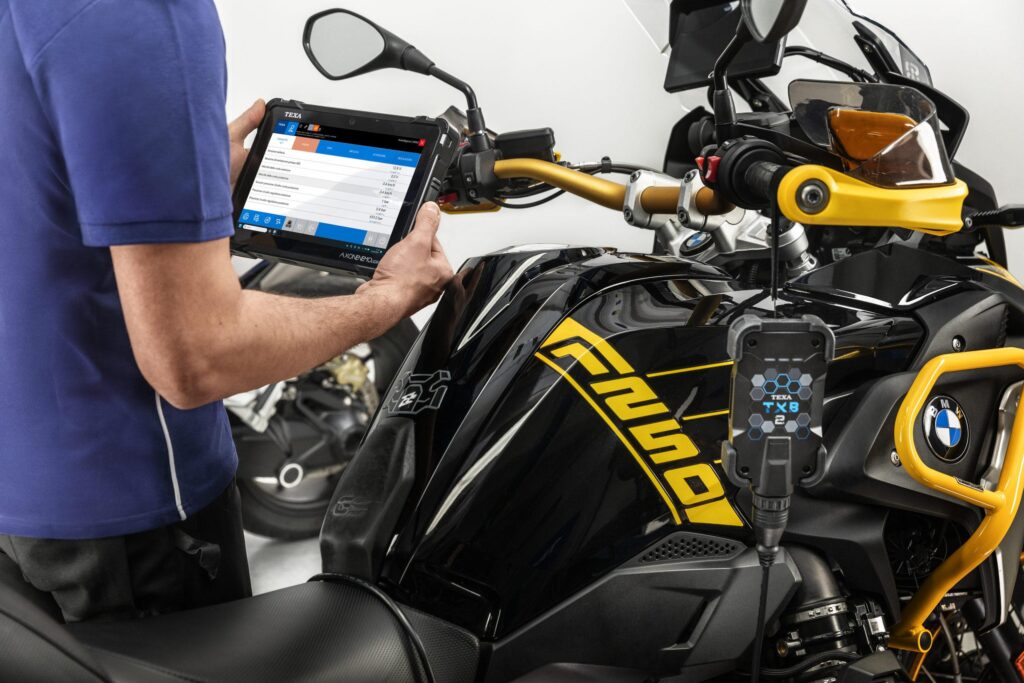

IDC5 was designed with a multi-environment approach, allowing efficient use across cars, light commercial vehicles, trucks, agricultural and construction vehicles, bikes, and boats.

The AXONE NEMO LIGHT provides the capability to operate in any two environments simultaneously, ensuring flexibility and efficiency in your daily tasks. This versatility makes it an invaluable tool for a wide range of diagnostic applications.

AXONE NEMO PLUS offers the possibility to operate on any three environments simultaneously, guaranteeing
flexibility and efficiency in your daily work.

Tech Specs

MANUFACTURER
TEXA S.p.A.

MODEL
AXONE NEMO LIGHT

PROCESSOR
Intel© N100 with standard dissipation

RAM
8 GB DDR5

HARD DISK
250 GB with eMMC technology

BIOS
64 Mbit Flash ROM, AMI BIOS

OPERATING SYSTEM
Windows™ 11 IoT Enterprise

VIDEO PERIPHERAL DEVICES(built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.

AUDIO PERIPHERAL DEVICES (built-in):
2 speakers

WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2

I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI

CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel

LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

ROBUSTNESS
Rugged design

INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh

EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A

ABSORPTION
12 Vdc (2Adc)

OPERATING TEMPERATURE
0 ÷ 40 °C

WARRANTY
1 year

Related products

AXONE Nemo Light

Categories , , , , , , , Tags , ,

Description

We offer the best prices on the AXONE Nemo Light. The AXONE Nemo Light is one of the top choices for diagnostics in the automotive industry. Designed by TEXA, this product is built to perform in tough environments. It features a rugged, compact, and reinforced design, making it highly reliable and practical for any workshop. This product is shock-resistant, waterproof, and drop-tested, with outstanding diagnostic capabilities that meet industry demands. If you’re looking for a versatile diagnostic tool, this tablet is ideal for use across multiple environments, allowing operation on any two diagnostic systems simultaneously.

It runs on Windows 11 IoT Enterprise, powered by an Intel N100 Quad Core processor, and offers a 10.1” bright display, 8 GB of RAM, and 250 GB of storage. Equipped with Wi-Fi and Bluetooth 5.2, it ensures quick and reliable connectivity.

Call Now Add to Cart



Get This Product Customized

Do you need the AXONE Nemo Light tailored for specific environments? We can customize this product to match your exact requirements. Contact us to learn more about the product and how we can customize it for you.

Call Now Add to Cart

Key Features

If you’re looking for one of the best diagnostic tools on the market, the AXONE Nemo Light is unbeatable. This tablet is designed to work across multiple environments, providing flexibility and efficiency in your daily work. It’s the perfect compact diagnostic tool, offering all the essential features you need, and even more.

Call Now Get Special Deals



What Can I Use This Diagnostic Tool On?

The AXONE Nemo Light is compatible with multiple IDC5 environments. You can use it for cars, light commercial vehicles, bikes and boats diagnostics. With the right IDC5 software for your specific needs, this versatile tool can be used on almost any machine in the market.

We Have The Best Prices On The AXONE Nemo Light

We offer the best prices on the market for the AXONE Nemo Light and other TEXA products. You won’t beat the deals we can make. If you need this product customized to fit your exact needs, reach out to us. We would be happy to customize a solution just for you.

Call Now

Additional information

Tech Specs

Technical Specifications
DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously

OPERATING SYSTEM
Windows 10 Enterprise

PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W

GRAPHICS
Intel® Iris® Xe Graphics

COOLING
Fanless

RAM storage
16 GB LPDDR4 dual channel 3200 Mhz

MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe

CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)

STRUCTURE
In magnesium

BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)

BUILT-IN INTERFACE
GNSS

SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic

CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260

EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)

CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP

SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg

WARRANTY
2 years
