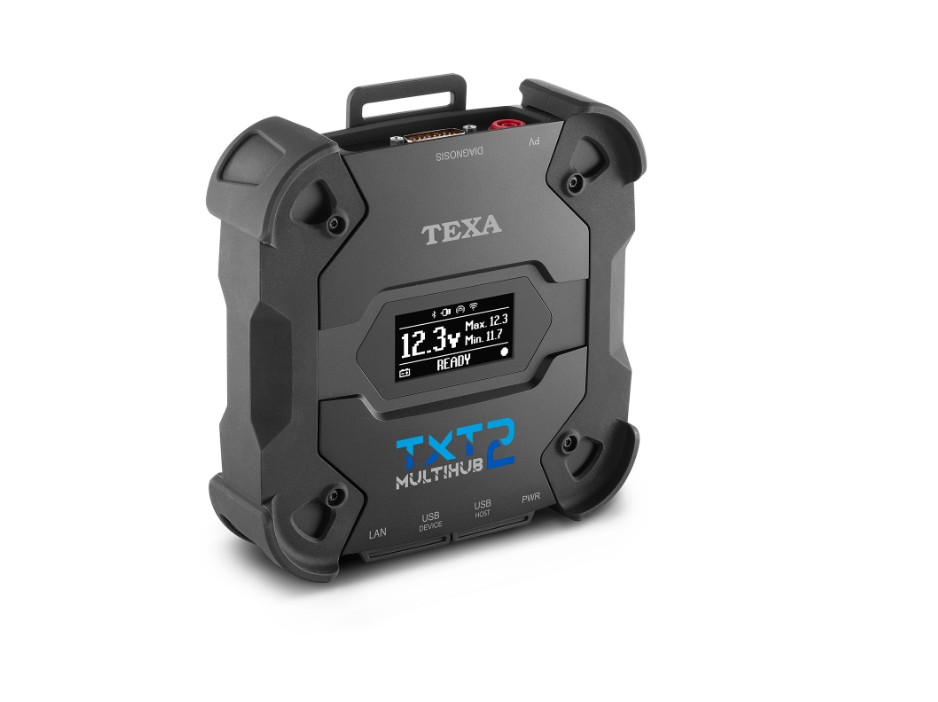

Navigator TXT Multihub

The Navigator TXT Multihub is a state of the art VCI that was just released by TEXA this year. There is no other vehicle communication interface on the market that has more features and functionality than the Navigator TXT Multihub. This product is used as the interface between the vehicle diagnostic port and software.

$2,600.00

Get Up To $500 In Tool Credits With Your Purchase

When you purchase the Navigator TXT Multihub you can earn up to $500 in tool credits. These tool credits can be used with us to purchase tool brands like Milwaulkee, DeWault, Craftsman, and more. Contact us to see how much you qualify for and to redeem the credits.

What's Included?

The Navigator TXT Multihub is a state of the art VCI that was just released by TEXA this year. There is no other vehicle communication interface on the market that has more features and functionality than the Navigator TXT Multihub. This product is used as the interface between the vehicle diagnostic port and software.

What Vehicles Can I Use This Diagnostic Bundle On?

The TEXA Navigator TXT Multihub can be used on any vehicle or machine within TEXA’s IDC5 environments. It is the perfect tool for anyone who does diagnostic work on multiple environments.

The best Wi-Fi configuration Station or Hotspot

TXT MULTIHUB can connect to the display unit in Station configuration, thus using of the workshop’s Wi-Fi network or, alternatively, a smartphone. This option guarantees greater coverage and a quicker exchange of data between the IDC5 software and the TEXA VCI.

In Hotspot configuration, instead, a “point-to-point” wireless connection can be created between the TXT MULTIHUB and the display tool. This is a very useful option when the workshop does not have a Wi-Fi connection, but the diagnostic operations requires greater coverage and speed, features that the Bluetooth cannot guarantee.

Multibrand diagnostics by TEXA

Nowadays technicians can work on different types of vehicles, with different diagnostic protocols and multiple connection modes.

For this reason TEXA developed the TXT MULTIHUB, an extremely versatile vehicle interface to scan all kind of vehicles:



  • CARS
  • COMMERCIAL VEHICLES
  • AGRICULTURAL & CONSTRUCTION EQUIPMENT
  • POWERSPORTS
  • BOATS & PWCs

It is a technologically advanced solution with unparalleled technical and constructive features: it can operate all 5 TEXA diagnostic modules, it has a built-in display, it is IP53 certified and can handle the management of DoIP, CAN-FD, J2534/RP1210 protocols and much more.

Want to know if this tool is right for you?

Get A Customized Recommendation

Are you having trouble figuring out what tools will work best for you? Let us know what equipment you work on and we will give you a custom recommendation based on our experience using different diagnostic tools. When we recommend products we will make sure they work on all of the equipment you diagnose.

Built-in display

TXT MULTIHUB is equipped with a practical backlit display that gives it great usability and the possibility to view the information based on three types of messages:

  • communication mode with the display unit
  • charging voltage of the battery in the vehicle it is connected to
  • operating status that can be standard diagnosis, DoIP Wi-Fi, DoIP Ethernet, CAN-FD, Pass-Thru..
The display allows the technician to have constant control on the tool’s operation: it reproduces more than 40 messages.


Battery voltage at a glance

The TXT MULTIHUB’s display indicates the live voltage of the battery of the vehicle. This is an essential to perform delicate operations like Pass-Thru reprogramming.

Robust, practical and handy. A true “rugged tool”.

TEXA developed the TXT MULTIHUB to last. It is equipped with a special reinforced body with anti-shock corners. Its certified protection level is IP53, therefore it resists splashes of water and dust. The TXT MULTIHUB passed the military standard MIL-STD 810G drop test, it can absorb impacts and falls.

Built-in DoIP, even wireless

TXT MULTIHUB allows easily performing the diagnosis on vehicles equipped with DoIP (Diagnostic over Internet Protocol) technology, even in Wi-Fi. This standard, developed to manage the massive presence of electronics in vehicles and the impressive mass of elaborated diagnostic data, requires using a connection based on the IP protocol.

Pass-Thru, direct access to the manufacturers’ data

TXT MULTIHUB, as already stated, is ready to operate in any configuration, even passing from a standard diagnosis to Pass-Thru in a completely automatic way. It is compliant with the SAE J2534-1 and SAE J2534-2  regulations, therefore it can connect to a vehicle and provide direct access to maintenance and diagnostic data made available by the vehicle manufactures and essential, for example, to update the software in one or more control units.

The TXT MULTIHUB is also RP1210 allowing diesel technicians to use it paired with the OE software.

Linux “on-board” operating system a continuously evolving interface

TXT MULTIHUB is equipped with the Linux operating system that gives it great usability and the possibility to evolve, adapting without problems to new future functions.

Furthermore, Linux improves its IT security and efficiency thanks to the communication in Smart mode: the interface automatically switches the channels based on the workshop dynamics and on the types of diagnosis, and always chooses the best connection available without the mechanic having to intervene.

Tech Specs

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte

Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)

Consumption: 1 A @12 V max

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)

WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz

Operational band: 2400 ÷ 2483.5 MHz

Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)

Electronic switch: 2-way, 13 independent positions

Control units reprogramming connector: PV (SAE J2534-1)

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Operating moisture: 10 ÷ 80 % without condensation

Dimensions [mm]: 176,1 x 175,4 x 46,8

Weight: 600 g

IP protection level: IP53 * (*) With properly closed protective caps.

Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17

Radio systems: ETSI EN 300 328

Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008

WARRANTY
1 year

Description

The Navigator TXT Multihub is a state of the art VCI that was just released by TEXA this year. There is no other vehicle communication interface on the market that has more features and functionality than the Navigator TXT Multihub. This product is used as the interface between the vehicle diagnostic port and software.

Call Now Add to Cart

Get This Product Customized

Do you need the TEXA Navigator TXT Multihub for a specific environment? We can customize this product to fit your exact needs. Contact us to get more information about the product and customizing it.

Call NowAdd to Cart

Key Features

The TEXA Navigator TXT Multihub has more features and functions than any other VCI on the market. This VCI is several steps ahead of any product you compare it to. It is used as the interface between the vehicle diagnostic port and the software. It can transmit the data to the software either wirelessly or through a wired connection. It can work on any of TEXA’s IDC5 environments.

Call Now Get Special Deals

The Perfect Product For Diagnostics
TEXA Navigator TXT Multihub

Kisst Diagnostics was part of the field beta testing and development of the TEXA Navigator TXT Multihub. We have used this product on the diagnostic service side of our business and it works great. We have used it in every diagnostic environment. There is nothing that compares to the quality and efficiency of this product.

Call Now Contact Us

What Can I Use This Diagnostic Tool On?

The TEXA Navigator TXT Multihub can be used on any vehicle or machine within TEXA’s IDC5 environments. It is the perfect tool for anyone who does diagnostic work on multiple environments.

We Have The Best Prices On The TEXA Navigator TXT Multihub

We offer the best prices on the market for the TEXA Navigator TXT Multihub and other TEXA products. You won’t beat the deals we can make. If you need this product customized to fit your exact needs, reach out to us. We would be happy to customize a solution just for you.

Call Now

TEXA Navigator TXT Multihub

Additional information

Tech Specs

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte

Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 Vdc
(from vehicle battery via OBD connector or specific
wirings)

Consumption: 1 A @12 V max

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)

WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz

Operational band: 2400 ÷ 2483.5 MHz

Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)

Electronic switch: 2-way, 13 independent positions

Control units reprogramming connector: PV (SAE J2534-1)

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Operating moisture: 10 ÷ 80 % without condensation

Dimensions [mm]: 176,1 x 175,4 x 46,8

Weight: 600 g

IP protection level: IP53 * (*) With properly closed protective caps.

Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17

Radio systems: ETSI EN 300 328

Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
